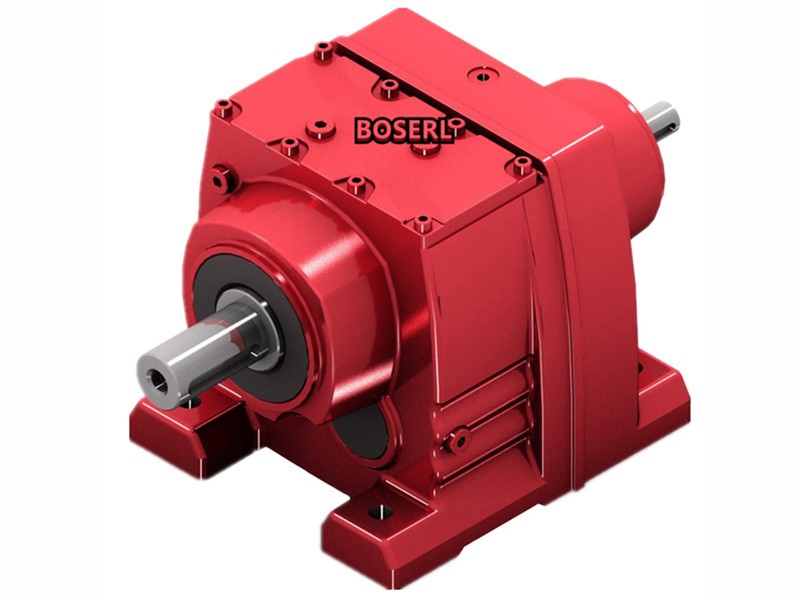

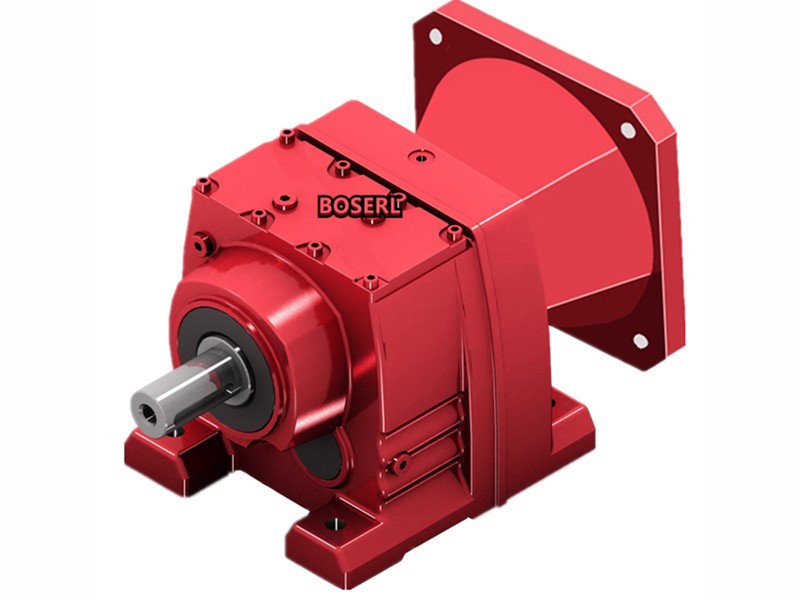

R107減速機詳細信息
R107減速機
訂購熱線：13360667204
R107減速機重量：R107減速機重量153Kg，R107減速機配電機重量分別如下：
R107減速機配1.5KW電機重量176Kg,R107減速機配2.2KW電機重量185Kg,R107減速機配3KW電機重量188Kg,R107減速機配4KW電機重量199Kg,R107減速機配5.5KW電機重量213Kg,R107減速機配7.5KW電機重量226Kg,R107減速機配11KW電機重量268Kg,R107減速機配15KW電機重量288Kg,R107減速機配18.5KW電機重量325Kg,R107減速機配22KW電機重量338Kg,R107減速機配30KW電機重量406Kg,R107減速機配37KW電機重量453Kg,R107減速機配45KW電機重量488Kg。
R107減速機加油量：可加礦物油
規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。下述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。R107減速機M1安裝加6/13.7升，R107減速機M2安裝加16.3升，R107減速機M3安裝加16.9升，R107減速機M4安裝加19.2升，R107減速機M5安裝加13.2升，R107減速機M6安裝加15.9升。

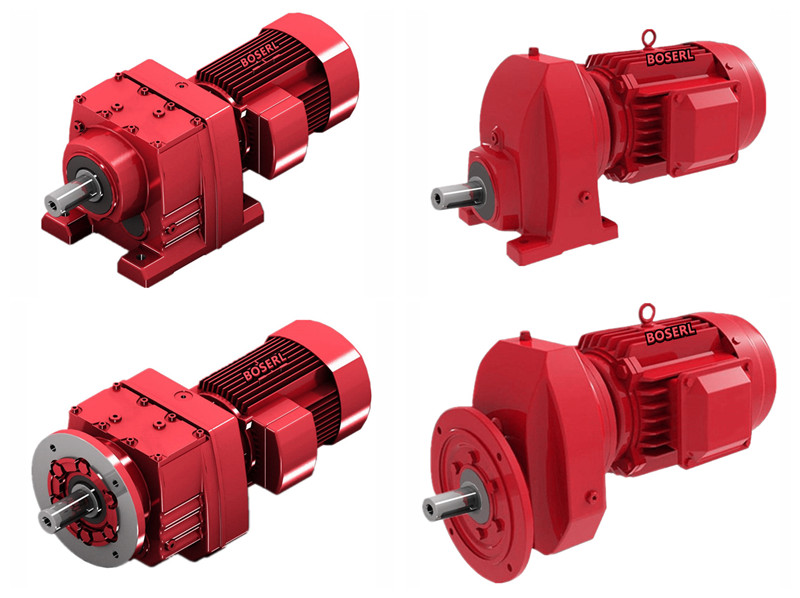

R107減速機實物圖：圖一為R107底腳安裝斜齒輪減速機，圖二RF107法蘭立式安裝斜齒輪減速機，圖三為RX107減速機不同心臥式底腳安裝，圖四為RXF107減速機不同心立式法蘭安裝。R系列減速機
R107減速機型號表示方法：
R107減速機性能參數表結構說明：KW代表電機功率，1/min代表輸出轉數，Nm代表輸出扭矩，i代表減速比，N代表徑向負荷，K代表服務系數，Frame size代表基座規格，Input Configuration代表輸入配置。
R107減速機型號結構R107-B45KW-4P-減速比-安裝方式-接線盒位置。
R107減速機電機接線盒方位說明：本頁附件選型資料視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。
R107減速機結構圖：齒輪減速機
R107減速機參數：
R107減速機電機可配變頻/剎車/防爆/伺服/交流/直流/三相/單相電機R107配1.5KW,R107配2.2KW,R107配3KW,R107配4KW,R107配5.5KW,R107配7.5KW,R107配11KW,R107配15KW,R107配18.5KW,R107配22KW,R107配30KW,R107配37KW,R107配45KW。
R107減速機減速比4.92比,5.82比,6.66比,7.86比,8.56比,10.13比,11.59比,13.66比,15.65比,18.21比,20.07比,22.62比,24.9比,27.58比,29.49比,30.77比,35.26比,40.37比,47.63比,52.68比,59.41比,65.6比,72.88比,78.57比,92.7比,102.53比,115.63比,127.68比,141.83比,158.68比,172.34比,203.16比,229.95比,251.15比。
R107減速機輸出轉速5.6轉,6.1轉,6.9轉,8.1轉,8.8轉,9.9轉,11轉,12轉,14轉,15轉,18轉,19轉,21轉,24轉,27轉,29轉,35轉,40轉,45轉,47轉,51轉,56轉,62轉,70轉,77轉,89轉,102轉,121轉,138轉,164轉,178轉,210轉,241轉,285轉。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）
R107減速機負載扭矩4300N.m,2970N.m,2900N.m。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大,或者兩個減速機組合使用）
R107減速機尺寸圖紙：高408*寬404*長495（帶輸出軸）同軸減速機
R107減速機型號：R107AQA80,R107AQA100,R107AQA115,R107AQA140,R107AQA160,R107AQA190,R107AQH80,R107AQH100,R107AQH115,R107AQH140,R107AQH160,R107AQH190,JRTR107-Y1.5KW,JRTR107-Y100M4,JRTR107-Y112M4,JRTR107-Y11KW,JRTR107-Y132M4,JRTR107-Y15KW,JRTR107-Y160M4,JRTR107-Y18.5KW,JRTR107-Y180M4,JRTR107-Y2.2KW,JRTR107-Y200M4,JRTR107-Y225M4,JRTR107-Y22KW,JRTR107-Y30KW,JRTR107-Y37KW,JRTR107-Y3KW,JRTR107-Y45KW,JRTR107-Y4KW,JRTR107-Y5.5KW,JRTR107-Y7.5KW,JRTR107-Y90M4,JRTR107-YEJ100M4,JRTR107-YEJ112M4,JRTR107-YEJ132M4,JRTR107-YEJ160M4,JRTR107-YEJ180M4,JRTR107-YEJ200M4,JRTR107-YEJ225M4,JRTR107-YEJ90M4,JRTR107-YS100M4,JRTR107-YS112M4,JRTR107-YS132M4,JRTR107-YS160M4,JRTR107-YS180M4,JRTR107-YS200M4,JRTR107-YS225M4,JRTR107-YS90M4,JRTR107-YVP100M4,JRTR107-YVP112M4,JRTR107-YVP132M4,JRTR107-YVP160M4,JRTR107-YVP180M4,JRTR107-YVP200M4,JRTR107-YVP225M4,JRTR107-YVP90M4,JRTR107-YVPEJ100M4,JRTR107-YVPEJ112M4,JRTR107-YVPEJ132M4,JRTR107-YVPEJ160M4,JRTR107-YVPEJ180M4,JRTR107-YVPEJ200M4,JRTR107-YVPEJ225M4,JRTR107-YVPEJ90M4,EWR107-Y1.5KW,EWR107-Y100M4,EWR107-Y112M4,EWR107-Y11KW,EWR107-Y132M4,EWR107-Y15KW,EWR107-Y160M4,EWR107-Y18.5KW,EWR107-Y180M4,EWR107-Y2.2KW,EWR107-Y200M4,EWR107-Y225M4,EWR107-Y22KW,EWR107-Y30KW,EWR107-Y37KW,EWR107-Y3KW,EWR107-Y45KW,EWR107-Y4KW,EWR107-Y5.5KW,EWR107-Y7.5KW,EWR107-Y90M4,EWR107-YEJ100M4,EWR107-YEJ112M4,EWR107-YEJ132M4,EWR107-YEJ160M4,EWR107-YEJ180M4,EWR107-YEJ200M4,EWR107-YEJ225M4,EWR107-YEJ90M4,EWR107-YS100M4,EWR107-YS112M4,EWR107-YS132M4,EWR107-YS160M4,EWR107-YS180M4,EWR107-YS200M4,EWR107-YS225M4,EWR107-YS90M4,EWR107-YVP100M4,EWR107-YVP112M4,EWR107-YVP132M4,EWR107-YVP160M4,EWR107-YVP180M4,EWR107-YVP200M4,EWR107-YVP225M4,EWR107-YVP90M4,EWR107-YVPEJ100M4,EWR107-YVPEJ112M4,EWR107-YVPEJ132M4,EWR107-YVPEJ160M4,EWR107-YVPEJ180M4,EWR107-YVPEJ200M4,EWR107-YVPEJ225M4,EWR107-YVPEJ90M4,SLR107-Y1.5KW,SLR107-Y100M4,SLR107-Y112M4,SLR107-Y11KW,SLR107-Y132M4,SLR107-Y15KW,SLR107-Y160M4,SLR107-Y18.5KW,SLR107-Y180M4,SLR107-Y2.2KW,SLR107-Y200M4,SLR107-Y225M4,SLR107-Y22KW,SLR107-Y30KW,SLR107-Y37KW,SLR107-Y3KW,SLR107-Y45KW,SLR107-Y4KW,SLR107-Y5.5KW,SLR107-Y7.5KW,SLR107-Y90M4,SLR107-YEJ100M4,SLR107-YEJ112M4,SLR107-YEJ132M4,SLR107-YEJ160M4,SLR107-YEJ180M4,SLR107-YEJ200M4,SLR107-YEJ225M4,SLR107-YEJ90M4,SLR107-YS100M4,SLR107-YS112M4,SLR107-YS132M4,SLR107-YS160M4,SLR107-YS180M4,SLR107-YS200M4,SLR107-YS225M4,SLR107-YS90M4,SLR107-YVP100M4,SLR107-YVP112M4,SLR107-YVP132M4,SLR107-YVP160M4,SLR107-YVP180M4,SLR107-YVP200M4,SLR107-YVP225M4,SLR107-YVP90M4,SLR107-YVPEJ100M4,SLR107-YVPEJ112M4,SLR107-YVPEJ132M4,SLR107-YVPEJ160M4,SLR107-YVPEJ180M4,SLR107-YVPEJ200M4,SLR107-YVPEJ225M4,SLR107-YVPEJ90M4,DSZR107-Y1.5KW,DSZR107-Y100M4,DSZR107-Y112M4,DSZR107-Y11KW,DSZR107-Y132M4,DSZR107-Y15KW,DSZR107-Y160M4,DSZR107-Y18.5KW,DSZR107-Y180M4,DSZR107-Y2.2KW,DSZR107-Y200M4,DSZR107-Y225M4,DSZR107-Y22KW,DSZR107-Y30KW,DSZR107-Y37KW,DSZR107-Y3KW,DSZR107-Y45KW,DSZR107-Y4KW,DSZR107-Y5.5KW,DSZR107-Y7.5KW,DSZR107-Y90M4,DSZR107-YEJ100M4,DSZR107-YEJ112M4,DSZR107-YEJ132M4,DSZR107-YEJ160M4,DSZR107-YEJ180M4,DSZR107-YEJ200M4,DSZR107-YEJ225M4,DSZR107-YEJ90M4,DSZR107-YS100M4,DSZR107-YS112M4,DSZR107-YS132M4,DSZR107-YS160M4,DSZR107-YS180M4,DSZR107-YS200M4,DSZR107-YS225M4,DSZR107-YS90M4,DSZR107-YVP100M4,DSZR107-YVP112M4,DSZR107-YVP132M4,DSZR107-YVP160M4,DSZR107-YVP180M4,DSZR107-YVP200M4,DSZR107-YVP225M4,DSZR107-YVP90M4,DSZR107-YVPEJ100M4,DSZR107-YVPEJ112M4,DSZR107-YVPEJ132M4,DSZR107-YVPEJ160M4,DSZR107-YVPEJ180M4,DSZR107-YVPEJ200M4,DSZR107-YVPEJ225M4,DSZR107-YVPEJ90M4,BR107-Y1.5KW,BR107-Y100M4,BR107-Y112M4,BR107-Y11KW,BR107-Y132M4,BR107-Y15KW,BR107-Y160M4,BR107-Y18.5KW,BR107-Y180M4,BR107-Y2.2KW,BR107-Y200M4,BR107-Y225M4,BR107-Y22KW,BR107-Y30KW,BR107-Y37KW,BR107-Y3KW,BR107-Y45KW,BR107-Y4KW,BR107-Y5.5KW,BR107-Y7.5KW,BR107-Y90M4,BR107-YEJ100M4,BR107-YEJ112M4,BR107-YEJ132M4,BR107-YEJ160M4,BR107-YEJ180M4,BR107-YEJ200M4,BR107-YEJ225M4,BR107-YEJ90M4,BR107-YS100M4,BR107-YS112M4,BR107-YS132M4,BR107-YS160M4,BR107-YS180M4,BR107-YS200M4,BR107-YS225M4,BR107-YS90M4,BR107-YVP100M4,BR107-YVP112M4,BR107-YVP132M4,BR107-YVP160M4,BR107-YVP180M4,BR107-YVP200M4,BR107-YVP225M4,BR107-YVP90M4,BR107-YVPEJ100M4,BR107-YVPEJ112M4,BR107-YVPEJ132M4,BR107-YVPEJ160M4,BR107-YVPEJ180M4,BR107-YVPEJ200M4,BR107-YVPEJ225M4,BR107-YVPEJ90M4,GR107-Y1.5KW,GR107-Y100M4,GR107-Y112M4,GR107-Y11KW,GR107-Y132M4,GR107-Y15KW,GR107-Y160M4,GR107-Y18.5KW,GR107-Y180M4,GR107-Y2.2KW,GR107-Y200M4,GR107-Y225M4,GR107-Y22KW,GR107-Y30KW,GR107-Y37KW,GR107-Y3KW,GR107-Y45KW,GR107-Y4KW,GR107-Y5.5KW,GR107-Y7.5KW,GR107-Y90M4,GR107-YEJ100M4,GR107-YEJ112M4,GR107-YEJ132M4,GR107-YEJ160M4,GR107-YEJ180M4,GR107-YEJ200M4,GR107-YEJ225M4,GR107-YEJ90M4,GR107-YS100M4,GR107-YS112M4,GR107-YS132M4,GR107-YS160M4,GR107-YS180M4,GR107-YS200M4,GR107-YS225M4,GR107-YS90M4,GR107-YVP100M4,GR107-YVP112M4,GR107-YVP132M4,GR107-YVP160M4,GR107-YVP180M4,GR107-YVP200M4,GR107-YVP225M4,GR107-YVP90M4,GR107-YVPEJ100M4,GR107-YVPEJ112M4,GR107-YVPEJ132M4,GR107-YVPEJ160M4,GR107-YVPEJ180M4,GR107-YVPEJ200M4,GR107-YVPEJ225M4,GR107-YVPEJ90M4,RC107-Y1.5KW,RC107-Y100M4,RC107-Y112M4,RC107-Y11KW,RC107-Y132M4,RC107-Y15KW,RC107-Y160M4,RC107-Y18.5KW,RC107-Y180M4,RC107-Y2.2KW,RC107-Y200M4,RC107-Y225M4,RC107-Y22KW,RC107-Y30KW,RC107-Y37KW,RC107-Y3KW,RC107-Y45KW,RC107-Y4KW,RC107-Y5.5KW,RC107-Y7.5KW,RC107-Y90M4,RC107-YEJ100M4,RC107-YEJ112M4,RC107-YEJ132M4,RC107-YEJ160M4,RC107-YEJ180M4,RC107-YEJ200M4,RC107-YEJ225M4,RC107-YEJ90M4,RC107-YS100M4,RC107-YS112M4,RC107-YS132M4,RC107-YS160M4,RC107-YS180M4,RC107-YS200M4,RC107-YS225M4,RC107-YS90M4,RC107-YVP100M4,RC107-YVP112M4,RC107-YVP132M4,RC107-YVP160M4,RC107-YVP180M4,RC107-YVP200M4,RC107-YVP225M4,RC107-YVP90M4,RC107-YVPEJ100M4,RC107-YVPEJ112M4,RC107-YVPEJ132M4,RC107-YVPEJ160M4,RC107-YVPEJ180M4,RC107-YVPEJ200M4,RC107-YVPEJ225M4,RC107-YVPEJ90M4,MTD107-Y1.5KW,MTD107-Y100M4,MTD107-Y112M4,MTD107-Y11KW,MTD107-Y132M4,MTD107-Y15KW,MTD107-Y160M4,MTD107-Y18.5KW,MTD107-Y180M4,MTD107-Y2.2KW,MTD107-Y200M4,MTD107-Y225M4,MTD107-Y22KW,MTD107-Y30KW,MTD107-Y37KW,MTD107-Y3KW,MTD107-Y45KW,MTD107-Y4KW,MTD107-Y5.5KW,MTD107-Y7.5KW,MTD107-Y90M4,MTD107-YEJ100M4,MTD107-YEJ112M4,MTD107-YEJ132M4,MTD107-YEJ160M4,MTD107-YEJ180M4,MTD107-YEJ200M4,MTD107-YEJ225M4,MTD107-YEJ90M4,MTD107-YS100M4,MTD107-YS112M4,MTD107-YS132M4,MTD107-YS160M4,MTD107-YS180M4,MTD107-YS200M4,MTD107-YS225M4,MTD107-YS90M4,MTD107-YVP100M4,MTD107-YVP112M4,MTD107-YVP132M4,MTD107-YVP160M4,MTD107-YVP180M4,MTD107-YVP200M4,MTD107-YVP225M4,MTD107-YVP90M4,MTD107-YVPEJ100M4,MTD107-YVPEJ112M4,MTD107-YVPEJ132M4,MTD107-YVPEJ160M4,MTD107-YVPEJ180M4,MTD107-YVPEJ200M4,MTD107-YVPEJ225M4,MTD107-YVPEJ90M4,WXR107-WSS1.5KW,WXR107-WSS100M4,WXR107-WSS112M4,WXR107-WSS11KW,WXR107-WSS132M4,WXR107-WSS15KW,WXR107-WSS160M4,WXR107-WSS18.5KW,WXR107-WSS180M4,WXR107-WSS2.2KW,WXR107-WSS200M4,WXR107-WSS225M4,WXR107-WSS22KW,WXR107-WSS30KW,WXR107-WSS37KW,WXR107-WSS3KW,WXR107-WSS45KW,WXR107-WSS4KW,WXR107-WSS5.5KW,WXR107-WSS7.5KW,WXR107-WSS90M4,WXR107-WSSB100M4,WXR107-WSSB112M4,WXR107-WSSB132M4,WXR107-WSSB160M4,WXR107-WSSB180M4,WXR107-WSSB200M4,WXR107-WSSB225M4,WXR107-WSSB90M4,WXR107-WSSVP100M4,WXR107-WSSVP112M4,WXR107-WSSVP132M4,WXR107-WSSVP160M4,WXR107-WSSVP180M4,WXR107-WSSVP200M4,WXR107-WSSVP225M4,WXR107-WSSVP90M4,WXR107-WSSVPB100M4,WXR107-WSSVPB112M4,WXR107-WSSVPB132M4,WXR107-WSSVPB160M4,WXR107-WSSVPB180M4,WXR107-WSSVPB200M4,WXR107-WSSVPB225M4,WXR107-WSSVPB90M4。
R107減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.anjijunfu.com.cn/product/list-rxiliejiansuji-cn.html
推薦類似型號：R97減速機
關鍵詞:R系列減速機加電機一體化_R系列減速器_同向減速器_同向減速機_GR型減速機_R向減速機_R系列斜齒輪減速機_GR系列減速機_R型減速機_GR系列斜齒輪減速機
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: R107減速機 R107減速電機 R107減速器 R107減速箱 R107減速機生產廠家
